网络拓扑

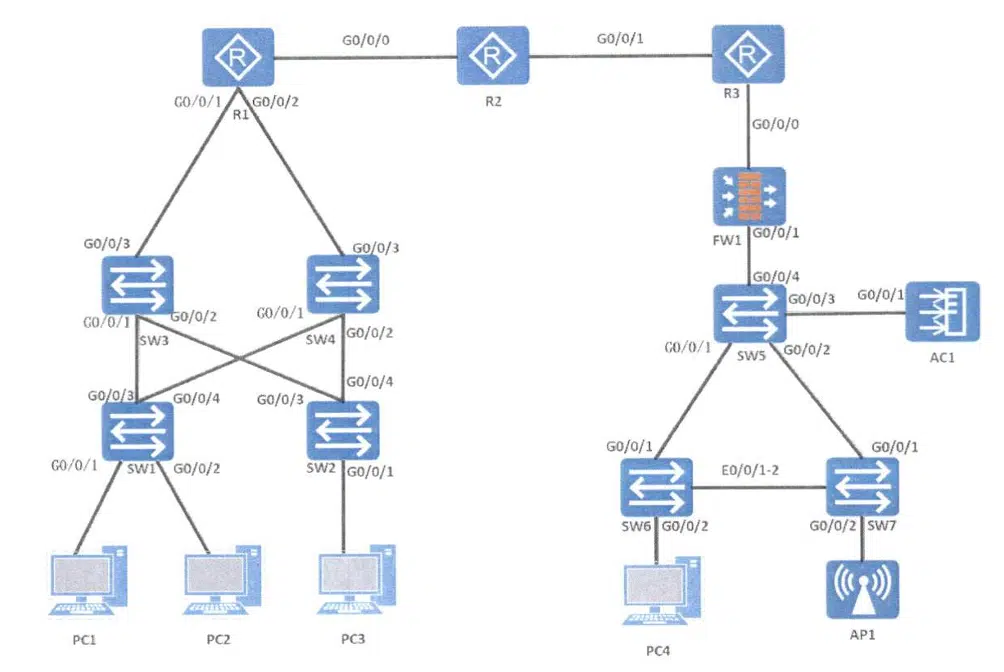

- 网络拓扑结构图：

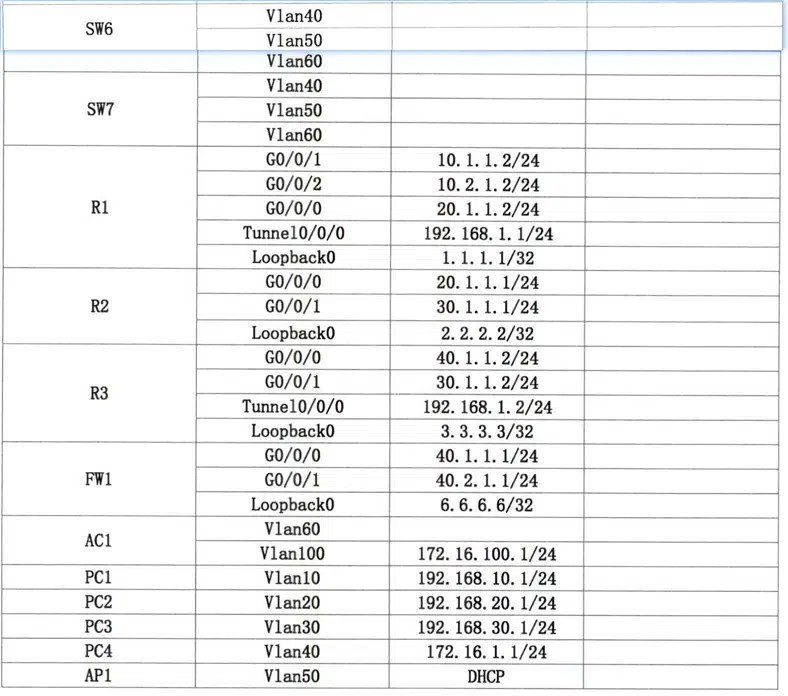

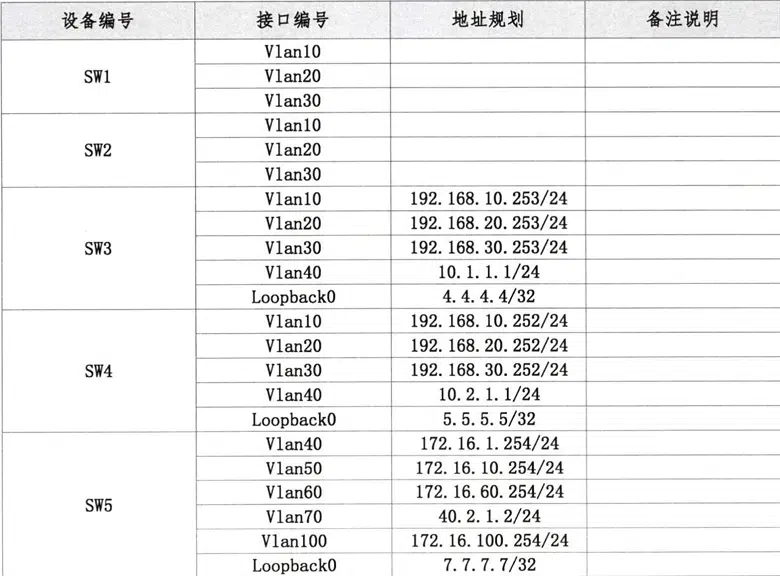

- 网络设备IP地址分配表
任务一、基础配置
备注：
先按照以下方法，依次配置好每台设备的主机名，创建VLAN和配置IP地址。
<Huawei>system-view //进入系统视图
[Huawei]sysname SW1 //设置主机名
[SW1]undo info-center enable //关闭信息中心（消除信息提示）
Info: Information center is disabled.- SW2配置：
[SW3]vlan batch 10 20 30 40 //分别创建VLAN 10 20 30 40
Info: This operation may take a few seconds. Please wait for a moment...done.
[SW3]interface Vlanif 10 //进入VLAN 10接口
[SW3-Vlanif10]ip address 192.168.10.253 24 //配置IP地址和掩码
[SW3-Vlanif10]quit
[SW3]使用display ip interface brief验证IP地址是否配置好
使用display vlan验证VLAN是否创建好
1.根据“网络设备IP地址分配表”的要求，进行如下配置:
(1)在交换机上创建对应的业务Vlan，并将交换机的相应端口加入对应的Vlan，端口均为Access类型;
- SW1配置：
# 下联口设置为Access模式并划分VLAN
[SW1]int GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan 10
[SW1-GigabitEthernet0/0/1]quit
# 下联口设置为Access模式并划分VLAN
[SW1]int GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type access
[SW1-GigabitEthernet0/0/2]port default vlan 20
[SW1-GigabitEthernet0/0/2]quit- SW2配置：
# 下联口设置为Access模式并划分VLAN
[SW2]interface GigabitEthernet 0/0/1
[SW2-GigabitEthernet0/0/1]port link-type access
[SW2-GigabitEthernet0/0/1]port default vlan 30
[SW2-GigabitEthernet0/0/1]quit- SW6配置：
[SW6]interface GigabitEthernet 0/0/2
[SW6-GigabitEthernet0/0/2]port link-type access
[SW6-GigabitEthernet0/0/2]port default vlan 40
[SW6-GigabitEthernet0/0/2]quit- SW7配置：
[SW7]interface GigabitEthernet 0/0/2
[SW7-GigabitEthernet0/0/2]port link-type access
[SW7-GigabitEthernet0/0/2]port default vlan 60
[SW7-GigabitEthernet0/0/2]quit(2)要求交换机之间互联接口既为二层备份也为三层备份:
(3)所有交换机互连的接口配置为Trunk接口，且只允许相关业务Vlan及管理Vlan通过:
- SW1配置：
# 同时配置两个上联口为Trunk模式并允许VLAN通过
[SW1]port-group group-member GigabitEthernet 0/0/3 to GigabitEthernet 0/0/4
[SW1-port-group]port link-type trunk
[SW1-port-group]port trunk allow-pass vlan 10 20 30
[SW1-port-group]quit- SW2配置：
# 同时配置两个上联口为Trunk模式并允许VLAN通过
[SW2]port-group group-member GigabitEthernet 0/0/3 to GigabitEthernet 0/0/4
[SW2-port-group]port link-type trunk
[SW2-port-group]port trunk allow-pass vlan 10 20 30
[SW2-port-group]quit- SW3配置：
[SW3]port-group group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/2
[SW3-port-group]port link-type trunk
[SW3-port-group]port trunk allow-pass vlan 10 20 30
[SW3-port-group]quit
[SW3]interface GigabitEthernet 0/0/3
[SW3-GigabitEthernet0/0/3]port link-type trunk
[SW3-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 20 30 40
[SW3-GigabitEthernet0/0/3]port trunk pvid vlan 40
[SW3-GigabitEthernet0/0/3]quit- SW4配置：
[SW4]port-group group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/2
[SW4-port-group]port link-type trunk
[SW4-port-group]port trunk allow-pass vlan 10 20 30
[SW4-port-group]quit
[SW4]interface GigabitEthernet 0/0/3
[SW4-GigabitEthernet0/0/3]port link-type trunk
[SW4-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 20 30 40
[SW4-GigabitEthernet0/0/3]port trunk pvid vlan 40
[SW4-GigabitEthernet0/0/3]quit- SW5配置：
[SW5]port-group group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/2
[SW5-port-group]port link-type trunk
[SW5-port-group]port trunk allow-pass vlan 40 50 60
[SW5-port-group]quit
[SW5]interface GigabitEthernet 0/0/4
[SW5-GigabitEthernet0/0/4]port link-type trunk
[SW5-GigabitEthernet0/0/4]port trunk allow-pass vlan 40 50 60 70 100
[SW5-GigabitEthernet0/0/4]port trunk pvid vlan 70
[SW5-GigabitEthernet0/0/4]quit- SW6配置：
[SW6]interface GigabitEthernet 0/0/1
[SW6-GigabitEthernet0/0/1]port link-type trunk
[SW6-GigabitEthernet0/0/1]port trunk allow-pass vlan 40 50 60
[SW6-GigabitEthernet0/0/1]quit- SW7配置：
[SW7]interface GigabitEthernet 0/0/1
[SW7-GigabitEthernet0/0/1]port link-type trunk
[SW7-GigabitEthernet0/0/1]port trunk allow-pass vlan 40 50 60
[SW7-GigabitEthernet0/0/1]quit- AC1配置：
[AC1]int GigabitEthernet 0/0/1
[AC1-GigabitEthernet0/0/1]port link-type trunk
[AC1-GigabitEthernet0/0/1]port trunk allow-pass vlan 60 100
[AC1-GigabitEthernet0/0/1]quit2.在SW3-5中，启用Telnet服务，远程登录账户仅包含“2026GZ”，密码为密文“GuangZhou2026”，要求最多允许5个用户同时telnet登录设备，配置用户级别为15。
SW3、SW4、SW5配置（一样）：
# 启用telnet服务
[SW3]telnet server enable
[SW3]aaa
# 设置用户名和密码
[SW3-aaa]local-user 2026GZ password simple GuangZhou2026
# 设置最多允许5个用户登录
[SW3-aaa]local-user 2026GZ access-limit 5
# 设置服务类型为telnet
[SW3-aaa]local-user 2026GZ service-type telnet
# 设置用户级别（权限）为15
[SW3-aaa]local-user 2026GZ privilege level 15
[SW3-aaa]quit
# 配置远程线路
[SW3]user-interface vty 0 4
[SW3-ui-vty0-4]authentication-mode aaa
[SW3-ui-vty0-4]quit3.在右侧的交换机之间运行MSTP协议，保障网络的稳定，以及解决环路问题:
(1)对MSTP进行如下设置:
MSTP域名为2026GZ:
实例1对应vlan 40;
实例2对应vlan 50:
修订级别为2;
[SW5]stp mode mstp
[SW5]stp region-configuration
[SW5-mst-region]region-name 2026GZ
[SW5-mst-region]instance 1 vlan 40
[SW5-mst-region]instance 2 vlan 50
[SW5-mst-region]revision-level 2
[SW5-mst-region]active region-configuration
[SW5-mst-region]quit
[SW6]stp mode mstp
[SW6]stp region-configuration
[SW6-mst-region]region-name 2026GZ
[SW6-mst-region]instance 1 vlan 40
[SW6-mst-region]instance 2 vlan 50
[SW6-mst-region]revision-level 2
[SW6-mst-region]active region-configuration
[SW6-mst-region]quit
[SW7]stp mode mstp
[SW7]stp region-configuration
[SW7-mst-region]region-name 2026GZ
[SW7-mst-region]instance 1 vlan 40
[SW7-mst-region]instance 2 vlan 50
[SW7-mst-region]revision-level 2
[SW7-mst-region]active region-configuration
[SW7-mst-region]quit(2)设置SW6为实例1的根桥，实例2的备根，SW7为实例2的根桥，实例1的备根
- 配置：
[SW6]stp instance 1 root primary
[SW6]stp instance 2 root secondary
[SW7]stp instance 2 root primary
[SW7]stp instance 1 root secondary- 验证：
[SW6]display stp region-configuration
Oper configuration
Format selector :0
Region name :2026GZ
Revision level :2
Instance VLANs Mapped
0 1 to 39, 41 to 49, 51 to 4094
1 40
2 50
[SW6]display stp brief
MSTID Port Role STP State Protection
0 Ethernet0/0/1 DESI FORWARDING NONE
0 Ethernet0/0/2 DESI FORWARDING NONE
0 GigabitEthernet0/0/1 ROOT FORWARDING NONE
0 GigabitEthernet0/0/2 DESI FORWARDING NONE
1 GigabitEthernet0/0/1 DESI FORWARDING NONE
1 GigabitEthernet0/0/2 DESI FORWARDING NONE
2 GigabitEthernet0/0/1 ROOT FORWARDING NONE
[SW7]display stp region-configuration
Oper configuration
Format selector :0
Region name :2026GZ
Revision level :2
Instance VLANs Mapped
0 1 to 39, 41 to 49, 51 to 4094
1 40
2 50
[SW7]display stp brief
MSTID Port Role STP State Protection
0 Ethernet0/0/1 ALTE DISCARDING NONE
0 Ethernet0/0/2 ALTE DISCARDING NONE
0 GigabitEthernet0/0/1 ROOT FORWARDING NONE
0 GigabitEthernet0/0/2 DESI FORWARDING NONE
1 GigabitEthernet0/0/1 ROOT FORWARDING NONE
2 GigabitEthernet0/0/1 DESI FORWARDING NONE
4.在SW6和SW7之间配置链路聚合，模式为LACP，根据目标物理地址来进行负载均衡。
- 配置：
[SW6]interface Eth-Trunk 1
[SW6-Eth-Trunk1]mode lacp-static
[SW6-Eth-Trunk1]trunkport Ethernet 0/0/1 0/0/2
[SW6-Eth-Trunk1]load-balance dst-mac
[SW6-Eth-Trunk1]port link-type trunk
[SW6-Eth-Trunk1]port trunk allow-pass vlan 40 50 60
[SW6-Eth-Trunk1]quit
[SW7]interface Eth-Trunk 1
[SW7-Eth-Trunk1]mode lacp-static
[SW7-Eth-Trunk1]trunkport Ethernet 0/0/1 0/0/2
[SW7-Eth-Trunk1]load-balance dst-mac
[SW7-Eth-Trunk1]port link-type trunk
[SW7-Eth-Trunk1]port trunk allow-pass vlan 40 50 60
[SW7-Eth-Trunk1]quit- 验证：
[SW6]display eth-trunk 1
Eth-Trunk1's state information is:
Local:
LAG ID: 1 WorkingMode: STATIC
Preempt Delay: Disabled Hash arithmetic: According to DA
System Priority: 32768 System ID: 4c1f-ccab-41d9
Least Active-linknumber: 1 Max Active-linknumber: 8
Operate status: up Number Of Up Port In Trunk: 2
--------------------------------------------------------------------------------
ActorPortName Status PortType PortPri PortNo PortKey PortState Weight
Ethernet0/0/1 Selected 100M 32768 2 289 10111100 1
Ethernet0/0/2 Selected 100M 32768 3 289 10111100 1
Partner:
--------------------------------------------------------------------------------
ActorPortName SysPri SystemID PortPri PortNo PortKey PortState
Ethernet0/0/1 32768 4c1f-ccc5-106b 32768 2 289 10111100
Ethernet0/0/2 32768 4c1f-ccc5-106b 32768 3 289 10111100
[SW7]display eth-trunk 1
Eth-Trunk1's state information is:
Local:
LAG ID: 1 WorkingMode: STATIC
Preempt Delay: Disabled Hash arithmetic: According to DA
System Priority: 32768 System ID: 4c1f-ccc5-106b
Least Active-linknumber: 1 Max Active-linknumber: 8
Operate status: up Number Of Up Port In Trunk: 2
--------------------------------------------------------------------------------
ActorPortName Status PortType PortPri PortNo PortKey PortState Weight
Ethernet0/0/1 Selected 100M 32768 2 289 10111100 1
Ethernet0/0/2 Selected 100M 32768 3 289 10111100 1
Partner:
--------------------------------------------------------------------------------
ActorPortName SysPri SystemID PortPri PortNo PortKey PortState
Ethernet0/0/1 32768 4c1f-ccab-41d9 32768 2 289 10111100
Ethernet0/0/2 32768 4c1f-ccab-41d9 32768 3 289 10111100任务二、有线网络配置
为保障公司内部主机能够访问网络，请按照以下要求完成主机通信，并完成相关路由表和对应邻居的配置，所有配置须在重启后依然生效。
1.为了保障单点网关故障，请在SW3与SW4中设置VRRP协议:
(1)要求虚拟IP为该网段最后一个可用地址,VRID为VLANID;
(2)设置Master与Backup设备的优先级与默认值相差20，并且设置SW3为PC1和PC2的根桥，设置SW4为PC3的根桥;
(3)侦测上行链路，如果上行链路发生故障，则降低50优先级:
(4)设置VRRP抢占延迟为15;
- 配置：
# SW3配置：
[SW3]interface Vlanif 10
#配置虚拟IP
[SW3-Vlanif10]vrrp vrid 10 virtual-ip 192.168.10.254
# 默认优先值100，SW3为PC1（VLAN10）根桥，所以设置为120，越大越优先
[SW3-Vlanif10]vrrp vrid 10 priority 120
# 侦测上行链路，若发生故障降低50优先级
[SW3-Vlanif10]vrrp vrid 10 track interface GigabitEthernet 0/0/3 reduced 50
# 抢占延迟为15
[SW3-Vlanif10]vrrp vrid 10 preempt-mode timer delay 15
[SW3-Vlanif10]quit
[SW3]interface Vlanif 20
[SW3-Vlanif10]vrrp vrid 20 virtual-ip 192.168.20.254
[SW3-Vlanif10]vrrp vrid 20 priority 120
[SW3-Vlanif10]vrrp vrid 20 track interface GigabitEthernet 0/0/3 reduced 50
[SW3-Vlanif10]vrrp vrid 20 preempt-mode timer delay 15
[SW3-Vlanif10]quit
[SW3]interface Vlanif 30
[SW3-Vlanif10]vrrp vrid 30 virtual-ip 192.168.30.254
[SW3-Vlanif10]vrrp vrid 30 priority 80
[SW3-Vlanif10]vrrp vrid 30 track interface GigabitEthernet 0/0/3 reduced 50
[SW3-Vlanif10]vrrp vrid 30 preempt-mode timer delay 15
[SW3-Vlanif10]quit
[SW3]interface Vlanif 40
[SW3-Vlanif10]vrrp vrid 40 virtual-ip 10.1.1.254
[SW3-Vlanif10]vrrp vrid 40 priority 120
[SW3-Vlanif10]vrrp vrid 40 track interface GigabitEthernet 0/0/3 reduced 50
[SW3-Vlanif10]vrrp vrid 40 preempt-mode timer delay 15
[SW3-Vlanif10]quit
# SW4配置：
[SW4]interface Vlanif 10
[SW4-Vlanif10]vrrp vrid 10 virtual-ip 192.168.10.254
[SW4-Vlanif10]vrrp vrid 10 priority 80
[SW4-Vlanif10]vrrp vrid 10 track interface GigabitEthernet 0/0/3 reduced 50
[SW4-Vlanif10]vrrp vrid 10 preempt-mode timer delay 15
[SW4-Vlanif10]quit
[SW4]interface Vlanif 20
[SW4-Vlanif10]vrrp vrid 20 virtual-ip 192.168.20.254
[SW4-Vlanif10]vrrp vrid 20 priority 80
[SW4-Vlanif10]vrrp vrid 20 track interface GigabitEthernet 0/0/3 reduced 50
[SW4-Vlanif10]vrrp vrid 20 preempt-mode timer delay 15
[SW4-Vlanif10]quit
[SW4]interface Vlanif 30
[SW4-Vlanif10]vrrp vrid 30 virtual-ip 192.168.30.254
[SW4-Vlanif10]vrrp vrid 30 priority 120
[SW4-Vlanif10]vrrp vrid 30 track interface GigabitEthernet 0/0/3 reduced 50
[SW4-Vlanif10]vrrp vrid 30 preempt-mode timer delay 15
[SW4-Vlanif10]quit
[SW4]interface Vlanif 40
[SW4-Vlanif10]vrrp vrid 40 virtual-ip 10.2.1.254
[SW4-Vlanif10]vrrp vrid 40 priority 80
[SW4-Vlanif10]vrrp vrid 40 track interface GigabitEthernet 0/0/3 reduced 50
[SW4-Vlanif10]vrrp vrid 40 preempt-mode timer delay 15
[SW4-Vlanif10]quit- 验证：
使用display vrrp brief或display vrrp进行验证
[SW3]display vrrp brief
VRID State Interface Type Virtual IP
----------------------------------------------------------------
10 Master Vlanif10 Normal 192.168.10.254
20 Master Vlanif20 Normal 192.168.20.254
30 Backup Vlanif30 Normal 192.168.30.254
40 Master Vlanif40 Normal 10.1.1.254
----------------------------------------------------------------
Total:4 Master:3 Backup:1 Non-active:0
[SW4]display vrrp brief
VRID State Interface Type Virtual IP
----------------------------------------------------------------
10 Backup Vlanif10 Normal 192.168.10.254
20 Backup Vlanif20 Normal 192.168.20.254
30 Master Vlanif30 Normal 192.168.30.254
40 Master Vlanif40 Normal 10.2.1.254
----------------------------------------------------------------

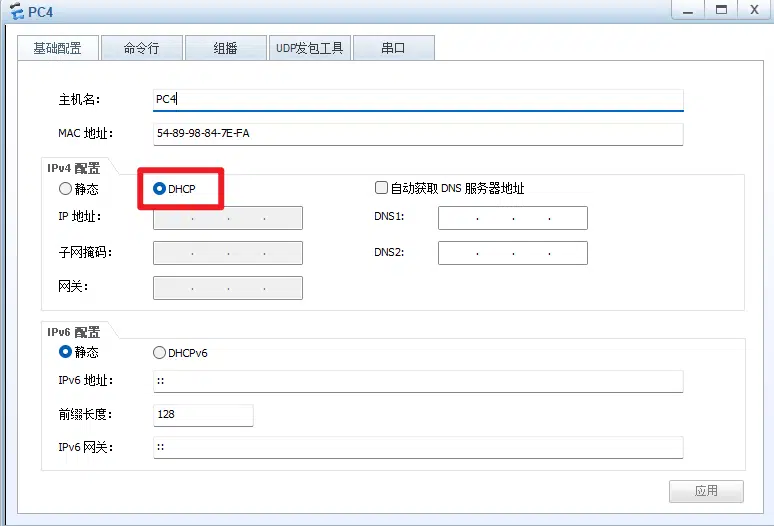

Total:4 Master:2 Backup:2 Non-active:0 2.在SW5中设置DHCP服务器，为PC4实现IP自动分配:
(1)设置172.16.1.0网段为vlan40的IP地址，地址池名称为vlan+vlanid，例如“vlan10”;
(2)设置网段中172.16.1.100-200的IP地址为不参与分配的IP地址;
(3)修改租期为12小时;
(4)在相关设备中进行设置，使得业务vlan能够获取到IP地址:
- 配置：
[SW5]dhcp enable
[SW5]ip pool vlan40
[SW5-ip-pool-vlan40]network 172.16.1.0 mask 24
[SW5-ip-pool-vlan40]gateway-list 172.16.1.254
[SW5-ip-pool-vlan40]excluded-ip-address 172.16.1.100 172.16.1.200
[SW5-ip-pool-vlan40]lease day 0 hour 12 minute 0
[SW5-ip-pool-vlan40]quit
[SW5]interface Vlanif 40
[SW5-Vlanif40]dhcp select global
[SW5-Vlanif40]quit- 验证：
[SW5]display ip pool name vlan40 used
Pool-name : vlan40
Pool-No : 0
Lease : 0 Days 12 Hours 0 Minutes
Domain-name : -
DNS-server0 : -
NBNS-server0 : -
Netbios-type : -
Position : Local Status : Unlocked
Gateway-0 : 172.16.1.254
Mask : 255.255.255.0
VPN instance : --
-----------------------------------------------------------------------------
Start End Total Used Idle(Expired) Conflict Disable
-----------------------------------------------------------------------------
172.16.1.1 172.16.1.254 253 1 151(0) 0 101
-----------------------------------------------------------------------------
Network section :
--------------------------------------------------------------------------
Index IP MAC Lease Status
--------------------------------------------------------------------------
252 172.16.1.253 5489-9884-7efa 186 Used
--------------------------------------------------------------------------3.在左侧R1、SW3和SW4中运行OSPF协议:
(1)router-id为loopback接口IP，进程号为10，区域为0.0.0.0;
(2)宜告精确网段;
(3)为了区域内更安全，开启区域认证，明文密钥为“md123456”
- 配置：
[R1]ospf 10 router-id 1.1.1.1
[R1-ospf-10]area 0
[R1-ospf-10-area-0.0.0.0]network 20.1.1.2 0.0.0.0
[R1-ospf-10-area-0.0.0.0]network 10.1.1.2 0.0.0.0
[R1-ospf-10-area-0.0.0.0]network 10.2.1.2 0.0.0.0
[R1-ospf-10-area-0.0.0.0]network 1.1.1.1 0.0.0.0
[R1-ospf-10-area-0.0.0.0]network 192.168.1.1 0.0.0.0
[R1-ospf-10-area-0.0.0.0]authentication-mode simple plain md123456
[R1-ospf-10-area-0.0.0.0]quit
[R1-ospf-10]quit
[SW3]ospf 10 router-id 4.4.4.4
[SW3-ospf-10]area 0
[SW3-ospf-10-area-0.0.0.0]network 4.4.4.4 0.0.0.0
[SW3-ospf-10-area-0.0.0.0]network 192.168.10.253 0.0.0.0
[SW3-ospf-10-area-0.0.0.0]network 192.168.20.253 0.0.0.0
[SW3-ospf-10-area-0.0.0.0]network 192.168.30.253 0.0.0.0
[SW3-ospf-10-area-0.0.0.0]network 10.1.1.1 0.0.0.0
[SW3-ospf-10-area-0.0.0.0]authentication-mode simple plain md123456
[SW3-ospf-10-area-0.0.0.0]quit
[SW3-ospf-10]quit
[SW4]ospf 10 router-id 5.5.5.5
[SW4-ospf-10]area 0
[SW4-ospf-10-area-0.0.0.0]network 5.5.5.5 0.0.0.0
[SW4-ospf-10-area-0.0.0.0]network 192.168.10.252 0.0.0.0
[SW4-ospf-10-area-0.0.0.0]network 192.168.20.252 0.0.0.0
[SW4-ospf-10-area-0.0.0.0]network 192.168.30.252 0.0.0.0
[SW4-ospf-10-area-0.0.0.0]network 10.2.1.1 0.0.0.0
[SW4-ospf-10-area-0.0.0.0]authentication-mode simple plain md123456
[SW4-ospf-10-area-0.0.0.0]quit
[SW4-ospf-10]quit- 验证：
display ospf brief
display ospf peer brief
display ospf nexthop
display ip routing-table protocol ospf4.在右侧R3、FW1和SW5中运行OSPF协议:
(1)router-id为loopback接口IP，进程号为10，区域为0.0.0.0;
(2)宜告精确网段;
(3)为了区域内更安全，开启区域认证，明文密钥为“md123456”
- 配置：
[R3]ospf 10 router-id 3.3.3.3
[R3-ospf-10]area 0
[R3-ospf-10-area-0.0.0.0]network 40.1.1.2 0.0.0.0
[R3-ospf-10-area-0.0.0.0]network 30.1.1.2 0.0.0.0
[R3-ospf-10-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[R3-ospf-10-area-0.0.0.0]network 192.168.1.2 0.0.0.0
[R3-ospf-10-area-0.0.0.0]authentication-mode simple plain md123456
[R3-ospf-10-area-0.0.0.0]quit
[R3-ospf-10]quit
[FW1]ospf 10 router-id 6.6.6.6
[FW1-ospf-10]area 0
[FW1-ospf-10-area-0.0.0.0]network 40.1.1.1 0.0.0.0
[FW1-ospf-10-area-0.0.0.0]network 40.2.1.1 0.0.0.0
[FW1-ospf-10-area-0.0.0.0]network 6.6.6.6 0.0.0.0
[FW1-ospf-10-area-0.0.0.0]authentication-mode simple plain md123456
[FW1-ospf-10-area-0.0.0.0]quit
[FW1-ospf-10]quit
[SW5]ospf 10 router-id 7.7.7.7
[SW5-ospf-10]area 0
[SW5-ospf-10-area-0.0.0.0]network 7.7.7.7 0.0.0.0
[SW5-ospf-10-area-0.0.0.0]network 172.16.1.254 0.0.0.0
[SW5-ospf-10-area-0.0.0.0]network 172.16.10.254 0.0.0.0
[SW5-ospf-10-area-0.0.0.0]network 172.16.60.254 0.0.0.0
[SW5-ospf-10-area-0.0.0.0]network 40.2.1.2 0.0.0.0
[SW5-ospf-10-area-0.0.0.0]network 172.16.100.254 0.0.0.0
[SW5-ospf-10-area-0.0.0.0]authentication-mode simple plain md123456
[SW5-ospf-10-area-0.0.0.0]quit
[SW5-ospf-10]quit最后再配置一下R2和FW1：
[R2]ospf 10 router-id 2.2.2.2
[R2-ospf-10]area 0
[R2-ospf-10-area-0.0.0.0]network 20.1.1.1 0.0.0.0
[R2-ospf-10-area-0.0.0.0]network 30.1.1.1 0.0.0.0
[R2-ospf-10-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[R2-ospf-10-area-0.0.0.0]authentication-mode simple plain md123456
[R2-ospf-10-area-0.0.0.0]quit
[R2-ospf-10]quit
[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet 0/0/1
[FW1-zone-trust]add interface GigabitEthernet 0/0/3
[FW1-zone-trust]quit- 验证：
PC1 PING PC4
display ospf brief
display ospf peer brief
display ospf nexthop

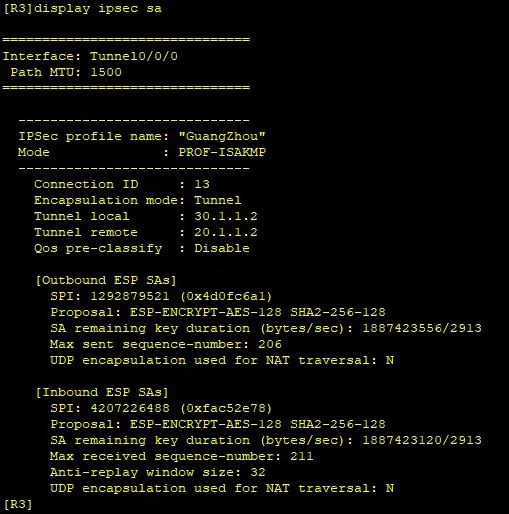

display ip routing-table protocol ospf5.在R1和R3建立IPSecOver GRE VPN，保障数据通信:
(1)配置GRE通过物理接口建立，并且要求Tunnel接口能够实时感应到拓扑变化:
[R1]interface Tunnel 0/0/0
[R1-Tunnel0/0/0]tunnel-protocol gre
[R1-Tunnel0/0/0]source 20.1.1.2
[R1-Tunnel0/0/0]destination 30.1.1.2
[R1-Tunnel0/0/0]quit
[R1]bfd
[R1]bfd 1 bind peer-ip 30.1.1.2 source-ip 20.1.1.2 auto
[R1-bfd-session-1]quit
[R3]int Tunnel 0/0/0
[R3-Tunnel0/0/0]tunnel-protocol gre
[R3-Tunnel0/0/0]source 30.1.1.2
[R3-Tunnel0/0/0]destination 20.1.1.2
[R3-Tunnel0/0/0]quit
[R3]bfd
[R3-bfd]quit
[R3]bfd 1 bind peer-ip 20.1.1.2 source-ip 30.1.1.2 auto
[R3-bfd-session-1]quit(2)IPSec安全提议的名称为gz1，安全协议使用esp，使用“sha2-256”的认证算法，使用“aes-128”的加密算法:
R1]ipsec proposal gz1
[R1-ipsec-proposal-gz1]esp authentication-algorithm sha2-256
[R1-ipsec-proposal-gz1]esp encryption-algorithm aes-128
[R1-ipsec-proposal-gz1]quit
[R3]ipsec proposal gz1
[R3-ipsec-proposal-gz1]esp authentication-algorithm sha2-256
[R3-ipsec-proposal-gz1]esp encryption-algorithm aes-128
[R3-ipsec-proposal-gz1]quit(3)IPSec的隧道建立时有IKE自动协商建立，与共享密钥的方式验证身份，IKE安全提议为“5”，用“md5”的认证算法，使用“aes-cbc-128”的加密算法，使用group14，IKE对等体为“2026GZ”，取消V2的支持，明文预共享密钥为“2026GZ123456"，IPSec profile 为GuangZhou.
[R1]ike proposal 5
[R1-ike-proposal-5]authentication-algorithm md5
[R1-ike-proposal-5]encryption-algorithm aes-cbc-128
[R1-ike-proposal-5]dh group14
[R1-ike-proposal-5]quit
[R1]ike peer 2026GZ v1
[R1-ike-peer-2026GZ]ike-proposal 5
[R1-ike-peer-2026GZ]pre-shared-key simple 2026GZ123456
[R1-ike-peer-2026GZ]quit
[R1]ipsec profile GuangZhou
[R1-ipsec-profile-GuangZhou]proposal gz1
[R1-ipsec-profile-GuangZhou]ike-peer 2026GZ
[R1-ipsec-profile-GuangZhou]quit
[R3]ike proposal 5
[R3-ike-proposal-5]authentication-algorithm md5
[R3-ike-proposal-5]encryption-algorithm aes-cbc-128
[R3-ike-proposal-5]dh group14
[R3-ike-proposal-5]quit
[R3]ike peer 2026GZ v1
[R3-ike-peer-2026GZ]ike-proposal 5
[R3-ike-peer-2026GZ]pre-shared-key simple 2026GZ123456
[R3-ike-peer-2026GZ]quit
[R3]ipsec profile GuangZhou
[R3-ipsec-profile-GuangZhou]proposal gz1
[R3-ipsec-profile-GuangZhou]ike-peer 2026GZ
[R3-ipsec-profile-GuangZhou]quit(4)在相关接口上应用。
[R1]interface Tunnel 0/0/1
[R1-Tunnel0/0/1]ip address 192.168.2.1 24
[R1-Tunnel0/0/1]tunnel-protocol ipsec
[R1-Tunnel0/0/1]source Tunnel 0/0/0
[R1-Tunnel0/0/1]destination 192.168.1.2
[R1-Tunnel0/0/1]ipsec profile GuangZhou
[R1-Tunnel0/0/1]quit
[R1]ospf 10 router-id 1.1.1.1
[R1-ospf-10]area 0
[R1-ospf-10-area-0.0.0.0]network 192.168.2.1 0.0.0.0
[R1-ospf-10-area-0.0.0.0]quit
[R1-ospf-10]quit
[R3]interface Tunnel 0/0/1
[R3-Tunnel0/0/1]ip address 192.168.2.2 24
[R3-Tunnel0/0/1]tunnel-protocol ipsec
[R3-Tunnel0/0/1]source Tunnel 0/0/0
[R3-Tunnel0/0/1]destination 192.168.1.1
[R3-Tunnel0/0/1]ipsec profile GuangZhou
[R3-Tunnel0/0/1]quit
[R3]ospf 10 router-id 3.3.3.3
[R3-ospf-10]area 0
[R3-ospf-10-area-0.0.0.0]network 192.168.2.2 0.0.0.0
[R3-ospf-10-area-0.0.0.0]quit
[R3-ospf-10]quit6.使用BGP协议，使得R1与R3之间建立路由连接。
(1)设置EBGP对等体，使用Tunnel接口地址:
[R1]bgp 65001
[R1-bgp]router-id 1.1.1.1
[R1-bgp]peer 192.168.1.2 as-number 65001
[R1-bgp]quit
[R3]bgp 65002
[R3-bgp]router-id 3.3.3.3
[R3-bgp]peer 192.168.1.1 as-number 65002
[R3-bgp]quit(2)R1与R3上BGP中引入OSPF路由:
[R1]bgp 65001
[R1-bgp]import-route ospf 10
[R2]bgp 65002
[R2-bgp]import-route ospf 10任务三、无线网络配置
为保障公司内部无线设备可以有无线网使用，需配置无线网络服务。
1.在右侧设置无线局域网，使设备能够通过无线接入访问互联网:
(1)DHCP地址池基于van编号进行命名，给连接AP的用户分配IP地址的地址池名称为ap;
[AC1]ip pool vlan50
[AC1-ip-pool-vlan50]network 172.16.10.0 mask 24
[AC1-ip-pool-vlan50]gateway-list 172.16.10.254
[AC1-ip-pool-vlan50]quit
[AC1]ip pool ap
[AC1-ip-pool-ap]network 172.16.60.0 mask 24
[AC1-ip-pool-ap]gateway-list 172.16.60.254
[AC1-ip-pool-ap]quit
近期评论
